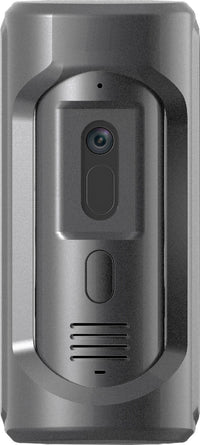

23-4VTO21A01E-P IP Villa Outdoor Station

SKU: 23-4VTO21A01E-P
In Stock
Add to Wishlist Add to Compare
Category: New Products
  • FAST DELIVERY CANADA WIDE

  • 100% ORIGINAL AND QUALITY

  • 3-12 MONTHS GUARANTEE

Technical Specification

Model

23-4VTO21A01E-P

System

Main Processor

Embedded Micro Processor

Operation System

Embedded LINUX OS

Camera

Image Sensor

1/2.7” 2MP CMOS

Focal Length

2.8mm

Angle of View

D:100° H:77°

Angle of View adjustment

Horizontal: -45° – +45°

Video

Video Compression

H.264

Video Streaming

Dual Stream

Day/Night

Auto(ICR), 5m

BLC Mode

WDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

OSD

Support

Audio

Audio Compression

G.711

Audio Input

Omnidirectional Mic

Audio Output

Built-in Speaker

Bidirectional Talk

Support Dual-way Bidirectional talk

Audio processing

Noise suppression, Echo cancellation

Operation Mode

Keypad

1 Mechanical Button

Interface

Door Control

1

Alarm In

1

RS485

1

Network

Ethernet

10M/100Mbps Self-adaptive

Network Protocol

TCP/IP, SIP

General

Ingress Protection

IP65, IK10

Tamper Switch

1

Tamper Screw

Support

Installation

Surface

Material

Front Panel: Zinc alloy

Rear Panel: Aluminum alloy

Holder: Aluminum alloy

Power

DC 12V, PoE(802.3af)

Power Consumption

Standby ≤2.5W, Work ≤7W

Working Temperature

﹣30°C to +60°C

Relative Humidity

10%RH–90%RH

Dimensions

163.0mm×73.0mm×54.5.0mm

Weight

0.8kg
