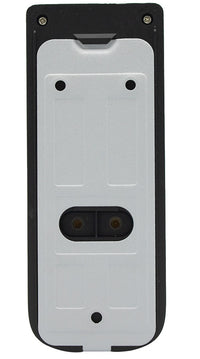

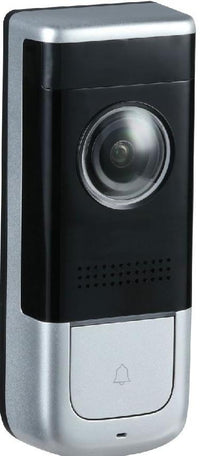

23-4DB11 Wi-Fi Video Doorbell

SKU: 23-4DB11
In Stock
Add to Wishlist Add to Compare
Category: New Products
  • FAST DELIVERY CANADA WIDE

  • 100% ORIGINAL AND QUALITY

  • 3-12 MONTHS GUARANTEE

This wireless video doorbell offers passive IR motion detection and transmits video and audio to a mobile phone for remote visual confirmation and communication with visitors. It offers high-resolution video idea for surveillance at homes and small retail or dining establishments.

Specifications

Camera
Image Sensor 1/2.7-in. 2 MP CMOS
Effective Pixels 1920 x 1080, 2 MP
Scanning System Progressive
IR Distance 5.0 m (16.50 ft)
Lens
Lens Type Fixed
Focal Length 1.9 mm
Angle of View, Horizontal 140°
Video and Audio
Video Compression H.264
Resolution 2 MP at 30 fps
PIR Configurable area and distance:

Coverage: up to 120°

Distance: up to 5.0 m (16.50 ft)

Audio Input Built-in Microphone
Output Built-in Speaker
Audio Compression G.711
Network
Wi-Fi 2.4 GHz Wi-Fi (IEEE802.11b/g/n)
Antenna Internal Dual Antennae, 2 x 2 MIMO
Interoperability CGI
Mobile Operating System IOS, Android
Edge Storage Micro SD Card Slot, maximum 64 GB
Electrical
Power Supply 16 VAC to 24 VAC or

12 VDC/24 VDC

Power Consumption < 9 W
Environmental
Operating Temperature –20° C to +50° C (–4° F to 122° F),

Less than 95% RH

Ingress Protection IP55
Construction
Casing Plastic
Dimensions 118.94 mm x 47.0 mm x 29.30 mm

(4.68 in. x 1.85 in. x 1.15 in.)

Net Weight 0.20 kg (0.44 lb)
Installation Surface-mount

This wireless video doorbell offers passive IR motion detection and transmits video and audio to a mobile phone for remote visual confirmation and communication with visitors. It offers high-resolution video idea for surveillance at homes and small retail or dining establishments.

Specifications

Camera
Image Sensor 1/2.7-in. 2 MP CMOS
Effective Pixels 1920 x 1080, 2 MP
Scanning System Progressive
IR Distance 5.0 m (16.50 ft)
Lens
Lens Type Fixed
Focal Length 1.9 mm
Angle of View, Horizontal 140°
Video and Audio
Video Compression H.264
Resolution 2 MP at 30 fps
PIR Configurable area and distance:

Coverage: up to 120°

Distance: up to 5.0 m (16.50 ft)

Audio Input Built-in Microphone
Output Built-in Speaker
Audio Compression G.711
Network
Wi-Fi 2.4 GHz Wi-Fi (IEEE802.11b/g/n)
Antenna Internal Dual Antennae, 2 x 2 MIMO
Interoperability CGI
Mobile Operating System IOS, Android
Edge Storage Micro SD Card Slot, maximum 64 GB
Electrical
Power Supply 16 VAC to 24 VAC or

12 VDC/24 VDC

Power Consumption < 9 W
Environmental
Operating Temperature –20° C to +50° C (–4° F to 122° F),

Less than 95% RH

Ingress Protection IP55
Construction
Casing Plastic
Dimensions 118.94 mm x 47.0 mm x 29.30 mm

(4.68 in. x 1.85 in. x 1.15 in.)

Net Weight 0.20 kg (0.44 lb)
Installation Surface-mount
