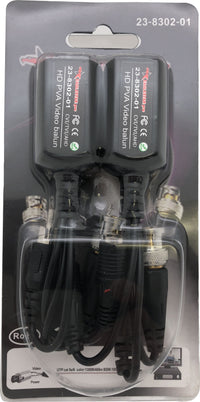

23-8302-01 RJ45 Jack Video Balun with DC Power, Audio & Mini-Coax BNC

SKU: 23-8302-01
In Stock
Add to Wishlist Add to Compare
  • FAST DELIVERY CANADA WIDE

  • 100% ORIGINAL AND QUALITY

  • 3-12 MONTHS GUARANTEE

> EASY SETUP: It's very simple and fast way to use ethernet with cctv system, has lights to indicate power and suppression protection (helpful during installation), bring you convenience when you are running wire long distance you need them.
> COST SAVING: You can run the cat5/6 wire long enough as you need, it's saved you money and time, you don't need to guess on how long of the pre made BNC type wire you need to buy, it's instead of cabling with BNC and power wires separately, they're cheaper and easier to use than coax cable.
> HIGH QUALITY VIDEO: The longest run color was about 1000 feet, B&W to 1600 feet, it's with video anti-interference protector, they help eliminate poor quality picture and remove lines and shadows, these have little to no interference.
> WIDELY APPLICATION: Bnc offer long distance video singal, DC can be powered at long distances for camera, it's compatible with all (720P/960P/1080P) HD-CVI, HD-TVI and HD-AHD cameras.


HD-CVI / TVI / CVBS PASSIVE VIDEO BALUN (NO Power Required)

60dB cross talk and noise immunity.
Compact size and easy installation
Built-in transient suppression protection
Innovative combinabie design
Material: ABS Plastic

Compatible with all HD-CVI, HD-TVI, HD-AHD
Up to 450m for 720P CVI Cameras
Up to 250m for 1080P CVI Cameras
Up to 250m for 720P/1080P TVI Cameras
Up to 320m for 720P AHD Cameras

Power-Distance Chart:
Using our product, cameras can powered at extended distance, please refer the chart below for more information:
100mA Camera 24VAA/21VAC 300m 28VAC/21VAC 700m 13VDC/10VDC 300m
300mA Camera 24VAA/21VAC 100m 28VAC/21VAC 230m 13VDC/10VDC 100m
500mA Camera 24VAA/21VAC 60m 28VAC/21VAC 140m 13VDC/10VDC 60m

Specification:
Frequency response: DC to 60Mhz
Attenuation: 0.5dB type
CMRR: 60dB
Surge Protection: 4KV
ESD: 8KV
Connectors: Female RJ45 jack
Impedance: BNC: 75 ohmas
Terminal: 100 ohms
Working Temperatrue: -10 to + 70
Storage Temperature: -30 to +70
Humidity: 0 to 95%
